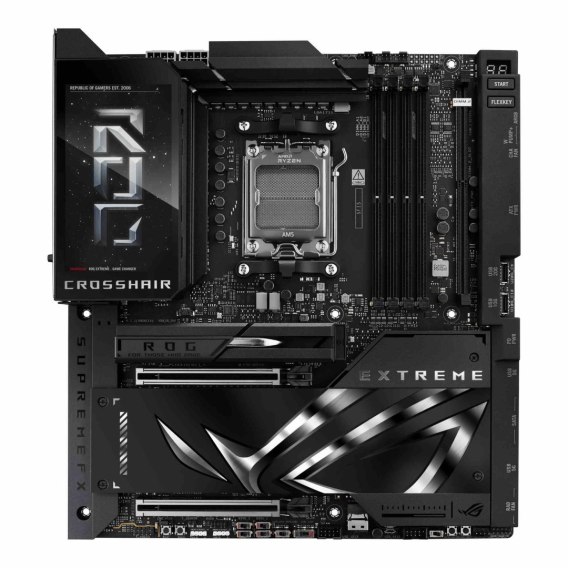

Płyta Asus ROG CROSSHAIR X870E EXTREME /AMD X870/DDR5/SATA3/M.2/USB4/WiFi/BT/PCIE5.0/AM5/E-ATX
Symbol:
ROG CROSSHAIR X870E EXTREME
Dostępność:
Mało
1
szt.
![]()
4458.07
Zamówienie telefoniczne: 606906465 Zostaw telefon
Wysyłka w ciągu:
24 godziny
Cena przesyłki:
0
Obsługiwane typy procesorów: AMD Ryzen™ (AM5)
Uwagi do procesora: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Format płyty: Extended-ATX
BIOS: 2 x 256 Mb Flash ROM, UEFI AMI BIOS
Chipset płyty głównej: AMD X870
Ilość złącz pamięci DDR5: 4
Maksymalna wielkość pamięci: 256 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-9000+ (OC), DDR5-8200+ (OC), DDR5-8000+ (OC)
Uwagi do pamięci RAM: Supports up to:, - 8200+MT/s(OC) with Ryzen™ 9000 Series Processors,, - 9000+MT/s(OC) with Ryzen™ 8000 Series Processors,, - 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,, ECC and Non-ECC, Un-buffered Memory, Supports AMD Extended Profiles for Overclocking (EXPO), NitroPath DRAM Technology, ASUS Enhanced Memory Profile (AEMP), Supported memory types, data rate (speed), and number of DRAM modules vary, depending on the CPU and memory configuration, for more information please, refer to CPU/Memory Support list under the Support tab of product, Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 5x M.2 + RAID 0,1,5,10 + 1x SlimSAS
Uwagi do kontrolera SATA: AMD Ryzen 9000 & 7000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), AMD Ryzen 8000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (Not supports), - M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports), AMD X870E Chipset:, - DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110, (supports PCIe 4.0 x4 mode), - DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110, (supports PCIe 4.0 x4 mode), - SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable, is purchased separately., - 4 x SATA 6Gb/s ports, When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be, disabled, When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will, run x4, M.2_2 will be disabled.
Wbudowana karta graficzna: Brak lub AMD Radeon™ Graphics (zależy od procesora)
Gniazda karty graficznej: HDMI, 2x USB4 Type-C
Uwagi do karty graficznej: Graphics specifications may vary between CPU types. Please refer to, AMD CPU specifications, Supports max. 4K@60Hz as specified in DisplayPort 1.4a, Supports 4K@60Hz as specified in HDMI 2.1, VGA resolution support depends on processors' or graphic cards' resolution.
Zintegrowana karta dźwiękowa: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Gniazda karty dźwiękowej: 2x Audio Jack, Wyjście optyczne S/PDIF, Wewnętrzne gniazdo audio przedniego panelu
Uwagi do karty dźwiękowej: Impedance sense for front and rear headphone outputs, Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, High quality 120 dB SNR stereo playback output and 110 dB SNR recording, Supports up to 32-Bit/384 kHz playback on front panel, SupremeFX Shielding Technology, ESS® ES9219 QUAD DAC, LED-illuminated audio jacks, Premium audio capacitors, A chassis with an HD audio module in the front panel is required to, support 7.1 Surround Sound audio output, The LINE OUT port on the rear panel does not support spatial audio, If you wish to use spatial audio, make sure to connect your audio output, device to the audio jack on the front panel of your chassis or use a USB, interface audio device.
Złącza PCI Express x16: 2
Uwagi do złącz PCI: AMD Ryzen 9000 & 7000 Series Desktop Processors:, - 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8, x8/x4/x4 modes), - When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, PCIEX16(G5)_1 and, PCIEX16(G5)_2 will run x8., - When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2, will run x4., - When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be, disabled, AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors:, - 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 &, total bandwidth for x8, PCIEx16(G5)_2 will be disabled), AMD Ryzen™ 8500 & 8300 Series Desktop Processors:, - 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 &, total bandwidth for x4, PCIEx16(G5)_2 will be disabled), Please check the PCIe bifurcation table on the support site, To ensure compatibility of the device installed, please refer to
Port LAN: 1x 5 Gigabit LAN Realtek®, 1x 10 Gigabit LAN Marvell® AQtion
Uwagi do karty sieciowej: ASUS LANGuard
Maksymalna ilość portów USB 2.0: 4
Maksymalna ilość portów USB 3.x: 16
Maksymalna ilość portów USB 4.0: 2
Porty USB na panelu tylnym: 8x USB 3.1 + 2x USB 3.1 Type-C + 2x USB4 Type-C
Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.1 Type-C (1 port)+ 1x USB 3.2 Type-C (1 port)
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetooth: Bluetooth V5.4
Uwagi do WiFi / BT: 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate, Wi-Fi features may vary depending on the operating system, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E, For Windows 10, please note that no driver is available, refer to the Wi-Fi, chipset vendor's website for details, Wi-Fi 6GHz frequency band and bandwidth regulatory may vary, between countries, The Bluetooth version may vary, please refer to the Wi-Fi module, manufacturer's website for the latest specifications
Port PS/2: Brak
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 2x 4-pin Chassis Fan headers, 2x 4-pin Radiator Fan headers, 2x W_PUMP+ headers, 6-pin ARGB Gen 2 header to support 2x ARGB Gen 2 headers, 2x Addressable Gen 2 header, Alteration PCIe mode switch, BIOS Switch button, FlexKey button, LN2 Mode jumper, 12x punkt pomiaru ProbeIt, ReTry button, 2x RSVD switches, RSVD header, Safe Boot button, Slow Mode switch, Start button, 10-1 pin System Panel header, Thermal Sensor header, Pause switch
Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)
Wymiary [S x W] (mm): 305 x 277
Wyposażenie dodatkowe: 1 x 1-to-3 ARGB splitter cable, 1 x 1-to-2 ARGB splitter cable, 2 x 1-to-4 fan splitter cable, 2 x ROG weave SATA 6G cable packages, 1 x 3-in-1 Thermistor cables pack, 1 x ROG DIMM.2 with heatsink, 1 x M.2 pad package for ROG Q-DIMM.2, 2 x Thermal pad for ROG Q-DIMM.2, 2 x Thermal pad for M.2 22110, 1 x DDR5 Fan holder, 1 x ROG Fan Kit, 1 x ASUS WiFi Q-Antenna, 1 x Q-connector, 1 x ROG logo plate sticker, 1 x ROG screwdriver, 1 x ROG stickers, 1 x ROG VIP card, 1 x M.2 Q-Slide package, 5 x M.2 backplate rubber packages, 1 x ROG Bottle Opener, 1 x USB drive with utilities and drivers, 1 x Quick start guide
Zawiera baterię / akumulator: Tak
Informacje dodatkowe: Operating System: Windows 11
Wyposażenie dodatkowe:
1 x ROG Fan Kit, 1 x ROG logo plate sticker, 1 x ROG screwdriver, 1 x ROG VIP card, 1x 1-to-2 ARGB splitter cable, 1x 1-to-3 ARGB splitter cable, 1x 3-in-1 Thermistor cables pack, 1x ASUS WiFi Q-Antenna, 1x DDR5 fan holder, 1x M.2 pad package for ROG Q-DIMM.2, 1x M.2 Q-Slide package, 1x Q-connector, 1x Quick start guide, 1x ROG Bottle Opener, 1x ROG DIMM.2 with heatsink, 1x ROG stickers, 1x USB drive with utilities and drivers, 2 x Thermal pad for M.2 22110, 2x 1-to-4 fan splitter cable, 2x ROG weave SATA 6G cable packages, 2x Thermal pad for ROG Q-DIMM.2, 5 x M.2 backplate rubber packages
Port Bluetooth:
Bluetooth V5.4
Format płyty:
Extended-ATX
Wymiary [S x W] (mm):
305 X 277
Maksymalna wielkość pamięci:
256 GB
Port LAN:
1x 10 Gigabit LAN Marvell® AQtion, 1x 5 Gigabit LAN Realtek®
Port Wi-Fi:
IEEE 802.11a/b/g/n/ac/ax/be
Wbudowana karta graficzna:
Brak lub AMD Radeon™ Graphics (zależy od procesora)
Chipset płyty głównej:
AMD X870
Standard pamięci:
DDR5-8000+ (OC), DDR5-8200+ (OC), DDR5-9000+ (OC)
Gniazdo procesora:
Socket AM5
Obsługiwane typy procesorów:
AMD Ryzen™ (AM5)
Uwagi do procesora:
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
BIOS:
2 x 256 Mb Flash ROM, UEFI AMI BIOS
Tryb pracy pamięci RAM:
Dual Channel
Uwagi do pamięci RAM:
- 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,, - 8200+MT/s(OC) with Ryzen™ 9000 Series Processors,, - 9000+MT/s(OC) with Ryzen™ 8000 Series Processors,, ASUS Enhanced Memory Profile (AEMP), depending on the CPU and memory configuration, for more information please, ECC and Non-ECC, Un-buffered Memory, NitroPath DRAM Technology, Non-ECC, un-buffered DDR5 memory supports On-Die ECC function, refer to CPU/Memory Support list under the Support tab of product, Supported memory types, data rate (speed), and number of DRAM modules vary, Supports AMD Extended Profiles for Overclocking (EXPO™), Supports up to:
Zintegrowany kontroler SATA:
Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 5x M.2 + RAID 0,1,5,10 + 1x SlimSAS
Uwagi do kontrolera SATA:
- 4 x SATA 6Gb/s ports, - DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110, - DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110, - M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), - M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (Not supports), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), - M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports), - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), - SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable, (supports PCIe 4.0 x4 mode), AMD Ryzen 8000 Series Desktop Processors:, AMD Ryzen 9000 & 7000 Series Desktop Processors:, AMD X870E Chipset:, disabled, is purchased separately., run x4, M.2_2 will be disabled., When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be, When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will
Gniazda karty graficznej:
2x USB4 Type-C, HDMI
Uwagi do karty graficznej:
AMD CPU specifications, Graphics specifications may vary between CPU types. Please refer to, Supports 4K@60Hz as specified in HDMI 2.1, Supports max. 4K@60Hz as specified in DisplayPort 1.4a, VGA resolution support depends on processors' or graphic cards' resolution.
Zintegrowana karta dźwiękowa:
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Gniazda karty dźwiękowej:
2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF
Złącza PCI Express x16:
2
Uwagi do złącz PCI:
- 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 &, - 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8, - When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be, - When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2, - When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, PCIEX16(G5)_1 and, AMD Ryzen 9000 & 7000 Series Desktop Processors:, AMD Ryzen™ 8500 & 8300 Series Desktop Processors:, AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors:, disabled, PCIEX16(G5)_2 will run x8., Please check the PCIe bifurcation table on the support site, To ensure compatibility of the device installed, please refer to, total bandwidth for x4, PCIEx16(G5)_2 will be disabled), total bandwidth for x8, PCIEx16(G5)_2 will be disabled), will run x4., x8/x4/x4 modes)
Uwagi do karty sieciowej:
ASUS LANGuard
Maksymalna ilość portów USB 2.0:
4
Maksymalna ilość portów USB 3.x:
16
Porty USB na panelu tylnym:
8x USB 3.1 + 2x USB 3.1 Type-C + 2x USB4 Type-C
Gniazda USB na płycie głównej:
2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.1 Type-C (1 port)+ 1x USB 3.2 Type-C (1 port)
Port PS/2:
Brak
Inne porty i gniazda:
10-1 pin System Panel header, 12x punkt pomiaru ProbeIt, 2x 4-pin Chassis Fan headers, 2x 4-pin Radiator Fan headers, 2x Addressable Gen 2 header, 2x RSVD switches, 2x W_PUMP+ headers, 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 6-pin ARGB Gen 2 header to support 2x ARGB Gen 2 headers, Alteration PCIe mode switch, BIOS Switch button, FlexKey button, LN2 Mode jumper, Pause switch, ReTry button, RSVD header, Safe Boot button, Slow Mode switch, Start button, Thermal Sensor header
Gniazdo zasilania:
ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)
Uwagi do karty dźwiękowej:
A chassis with an HD audio module in the front panel is required to, device to the audio jack on the front panel of your chassis or use a USB, ESS® ES9219 QUAD DAC, High quality 120 dB SNR stereo playback output and 110 dB SNR recording, If you wish to use spatial audio, make sure to connect your audio output, Impedance sense for front and rear headphone outputs, interface audio device., LED-illuminated audio jacks, Premium audio capacitors, support 7.1 Surround Sound audio output, Supports up to 32-Bit/384 kHz playback on front panel, Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, SupremeFX Shielding Technology, The LINE OUT port on the rear panel does not support spatial audio
Port szeregowy (COM):
Brak
Port równoległy (LPT):
Brak
Ilość złącz pamięci DDR5:
4
Uwagi do WiFi / BT:
2x2 Wi-Fi 7 (802.11be), between countries, chipset vendor's website for details, For Windows 10, please note that no driver is available, refer to the Wi-Fi, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E, manufacturer's website for the latest specifications, Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate, The Bluetooth version may vary, please refer to the Wi-Fi module, Wi-Fi 6GHz frequency band and bandwidth regulatory may vary, Wi-Fi features may vary depending on the operating system
Maksymalna ilość portów USB 4.0:
2
Zawiera baterię / akumulator:
Tak
